Description

The Elan has been in our ownership since 2013. There were two previous owners. The boat has been used exclusively for cruising the south and south west coast of Ireland. The boat was stored on the hard every winter from November to April. Included in sale is the winter storage cradle and a complete fitted winter cover. No expense has been spared in the maintenance and upkeep of the boat. An insurance hull and rigging survey was completed in 2025 and is available on request.

Specifications

Accommodation

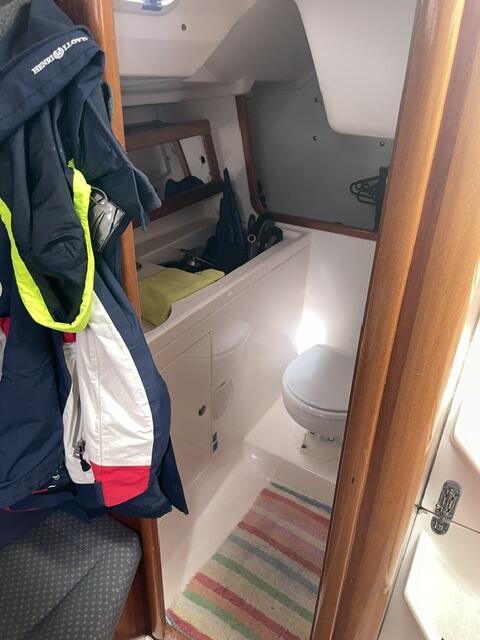

Heads
To starboard aft
Marine toilet, wash basin, stowage lockers & mirror Large wet hanging locker
Opening port-light

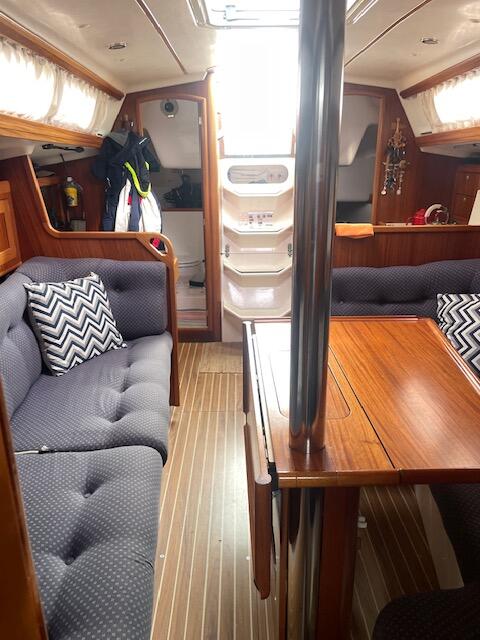

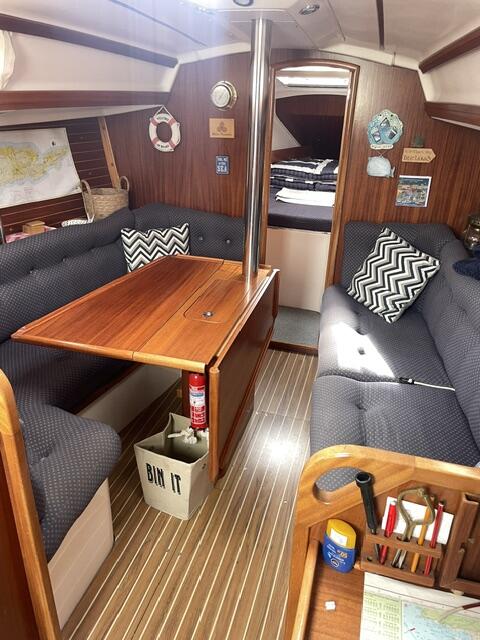

Saloon Headroom 1.85m
U-shaped saloon to port with stowage behind and beneath Settee to starboard with stowage
Foldable saloon table
Large deck hatch in centre of saloon - replaced

Galley
L-shaped galley to port
Gimballed 2 burner cooker with oven
Double stainless-steel sink
Refrigerated cool box

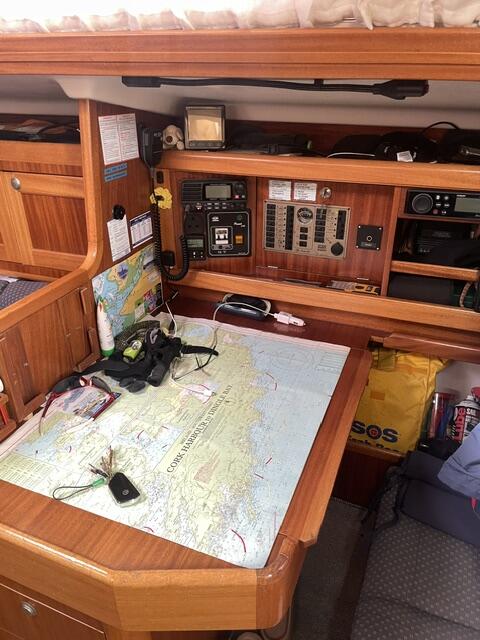

Chart-table
Chart table with adjustable spotlight Instrument & switch panel with gauges Stowage & shelves

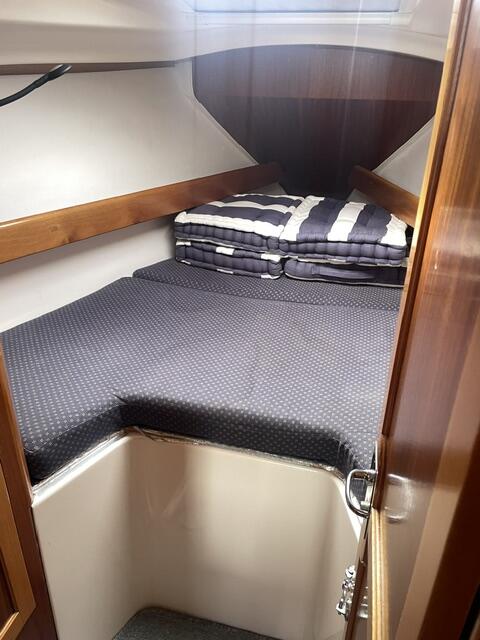

Fore Cabin
2 x V-berths with infill Hanging locker to port
Large opening hatch - Acrylic replaced

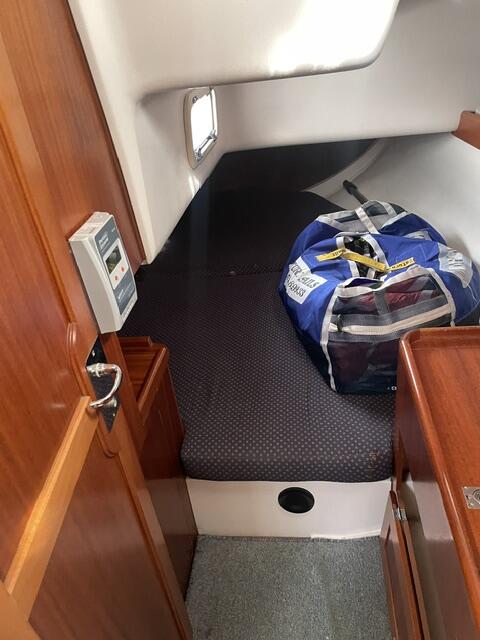

Aft Double Cabin

Construction

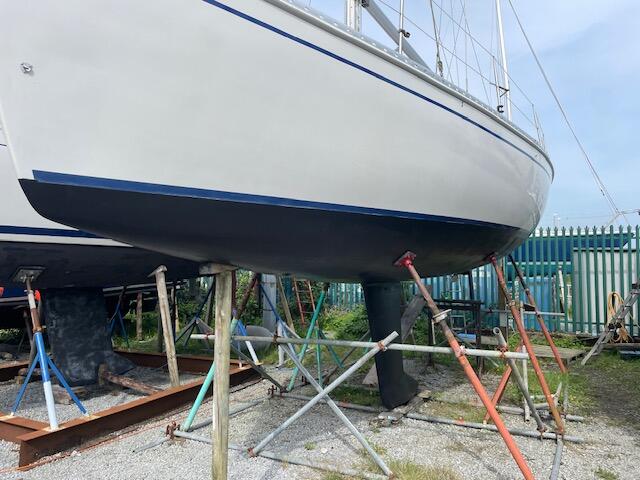

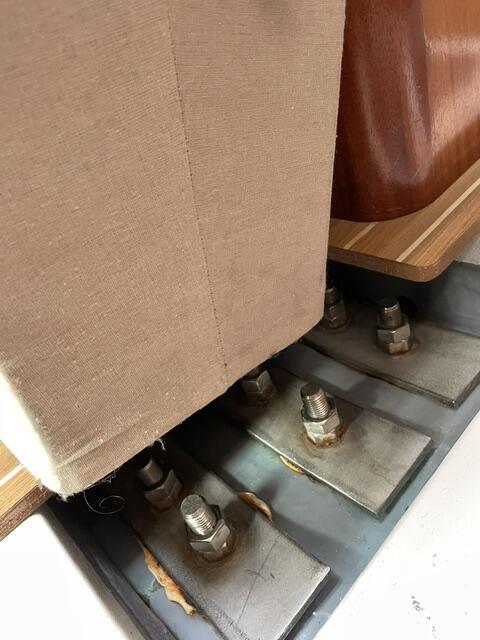

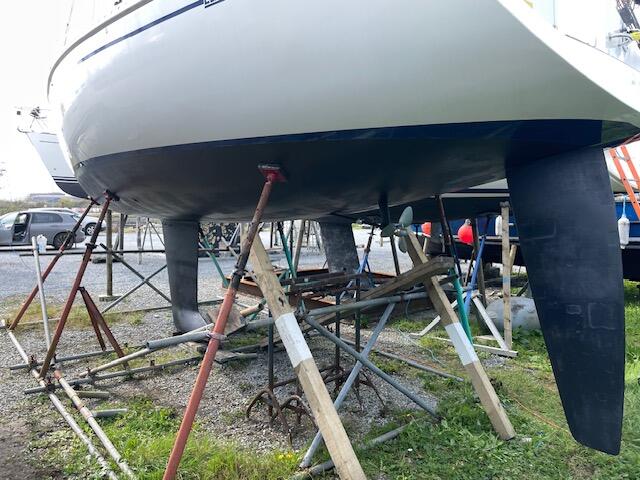

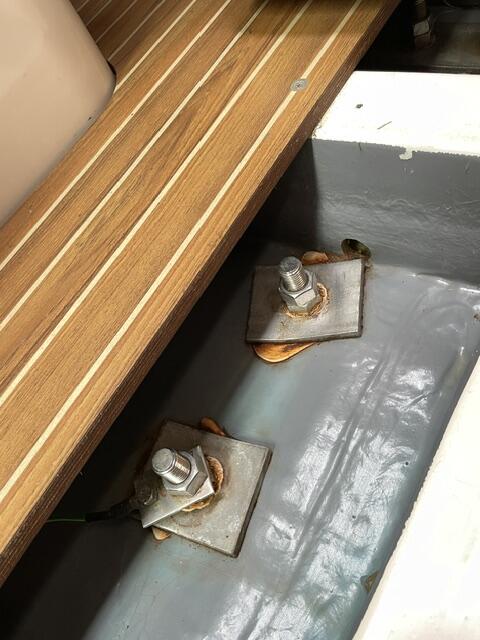

GRP Hull material Lead Fin Keel Spade Rudder

Original external teak decking section have all been replace with new 9mm teak sections from K J Howells and Son 2016.

Original wooden wash boards replace with Acrylic wash boards.

Equipment

Sowester 20lb Plough anchor with 5m 8mm chain and 20m warp.

5 Fenders and 4 mooring lines, Bow & stern lines with mooring snubbers.

2 locking winch handles

Stainless steel bathing ladder

Dinghy & Outboard

Various manuals
Boat hook
Deck brush
deck bucket
gas cylinders 2 off
keys to gas cylinder cabinet, in chart table two sets engine ignition keys, in chart table
two sets washboard lock keys, in portside aft locker shore power cable

Navigation Equipment

Personal laptop used as chart plotter (not included)

WIFI link to laptop for AIS contact display on Navionics.

Simrad TP 32 Autopilot.

Radio VHF/DSC STANDARD HORIZON GX1500F (2009) w/cockpit speaker

AMEC - AIS SOTDMA Transponder B600S / with integr. splitter, Communication type Transmitter/Receiver, Integrated VHF splitter 2019.

GPS Two separate GPS receivers installed, one dedicated to DSC VHF and one for AIS and instrumentation.

Depth Sounder

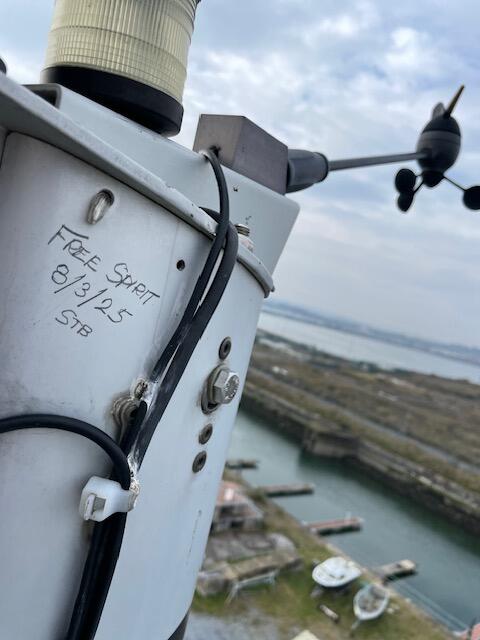

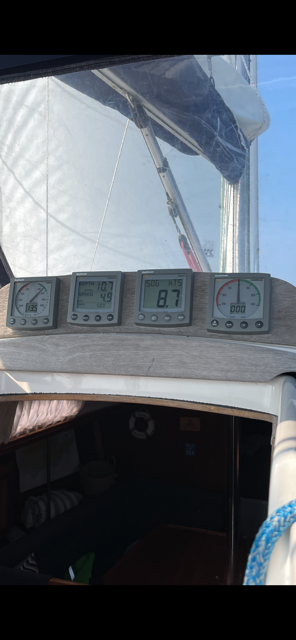

Raytheon ST60 Wind instrument

Raytheon ST60 Multi instrument

Fusion marine stereo RA70 fitted 2020.

Engine(s)

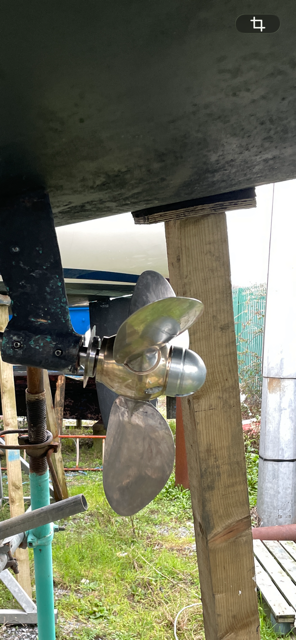

FEATHERSTREAM R4 LI2 3 bladed folding prop, new in 2019.

‘P’ bracket shaft bush, replaced 2025

DEEP SEA SEAL replaced 2024.

Hull openings (below waterline) all five have been replace with bronze skin fittings and valves.

ESBACHER space heater fitted.

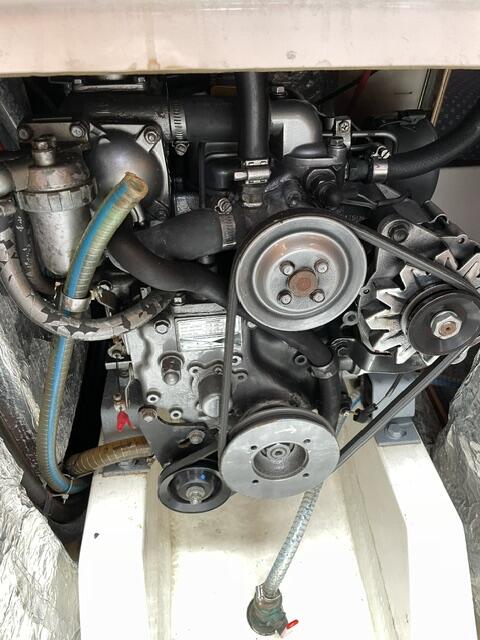

YANMAR engine Top-end overhaul 2018- 2019, including injector testing.

Selection of engine spares, belts, filters etc included. A complete serviced sea water pump is carried as spare for quick change out if an issue arises.

Battery(s) 1 x starter & 1x domestic (VICTRON ENERGY 12V 165AH AGM)

NASA - Clipper BM-1/BM-2 battery monitor" Model: BM-1.

Solar Panels 1 x 20w & 1 x 110W (MPPT Solar Charge Controller, PTR Tracer Series)

Pressurised water system & Hot water system

Shore Power including voltage inverter & battery charger

Tiller Steering (in stainless steel, with tiller extension)

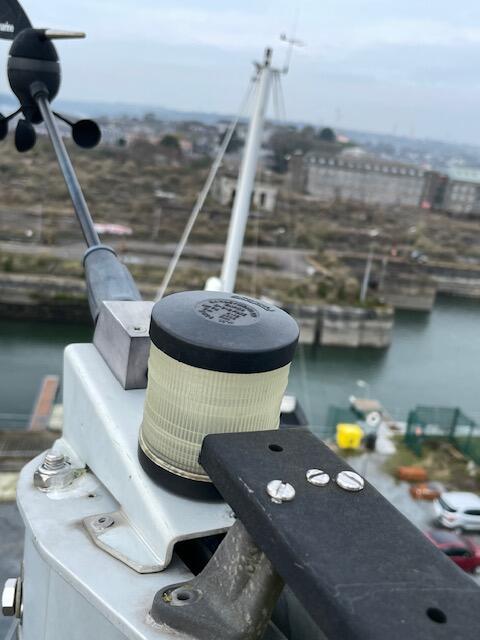

LED lights throughout, including anchor, steaming and navigation lights.

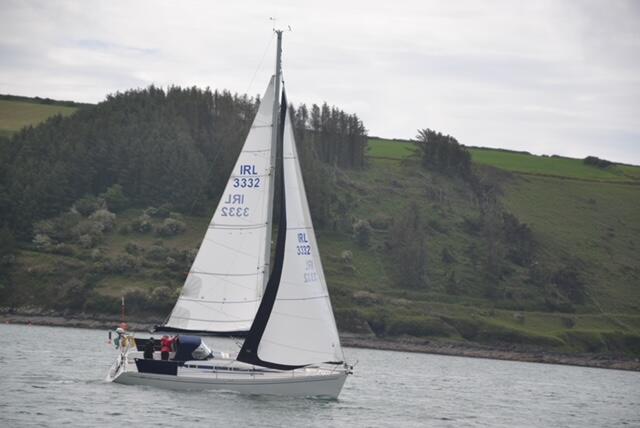

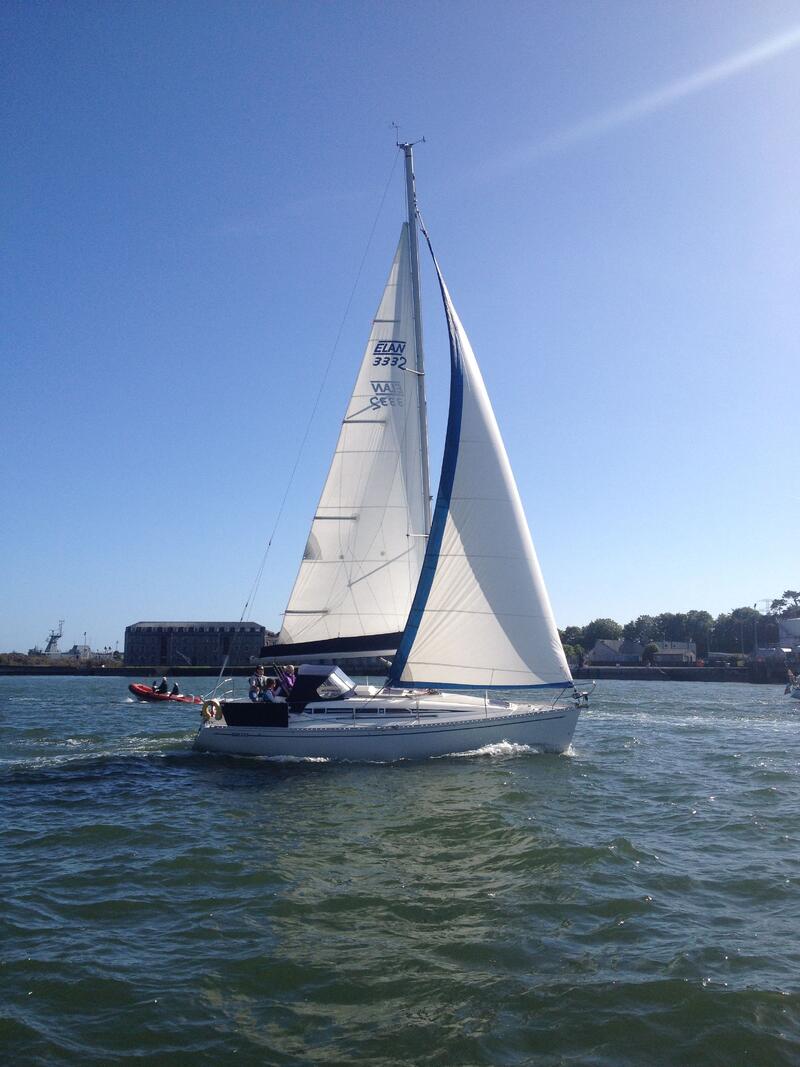

Sails & Spars

New main and genoa 2021 by UK Sailmakers, premium Dacron, main with 5 battens and 2 reefs (Single line reefing to cockpit). Geno 135 with foam luff.

Saturn Asymmetrical Spinnaker, multicoloured heavy weather cloth (2004) with Seldon Gx Furling system fitted in 2016.

UK/McWilliams Sails AP Spinnaker in red, Nylite 90 cloth (June 2009) and spinnaker pole

Lazy jacks & lazy bag, Cockpit cover & dodgers (2013) – All restitched 2023.

Running rigging in excellent condition (removed every winter)

Selden Aluminium deck-stepped mast Selden Boom with 16:1 outhaul

Rigid boom vang with gas spring Furlex roller reefing

Spinnaker pole track on mast

Selden telescopic Gennaker Bowsprit, 500mm USL Tack line aft running to coach roof clutch

Mainsheet traveller system replaced May 2011

Lewmar Sheet winches (42) Self-tailing & Lewmar Halyard winches (40) Self-tailing

8 coach roof clutches

2 Genoa sheet tracks with adjustable ball bearing Genoa cars (adjustable from cockpit)

Spare Main Halyard.

Original 140 Genoa with new UV strip included. Sail in fair condition.

Standing Rigging replaced in 2015.

Safety Equipment

Life raft (due service 2027) Seago Cruiser 4 Person Valise

EPIRB McMurdo G5 (in date)

Flares, P/Wessex Leisure Para Red 2off / P/Wessex Leisure Hand Red 2off / P/Wessex Leisure H/Smoke (Pinpoint) 2off

Jackstays

FIRE EXTINGUISHERS 2off

FIRST AID KIT

MANUAL BILGE PUMP and Auto Bilge pump.

FOG HORN

LIFEBUOY / MOB
